Place of Origin:
China
Brand Name:
TR
Certification:
CE
Model Number:
TR-535
Contact Us
Applications:

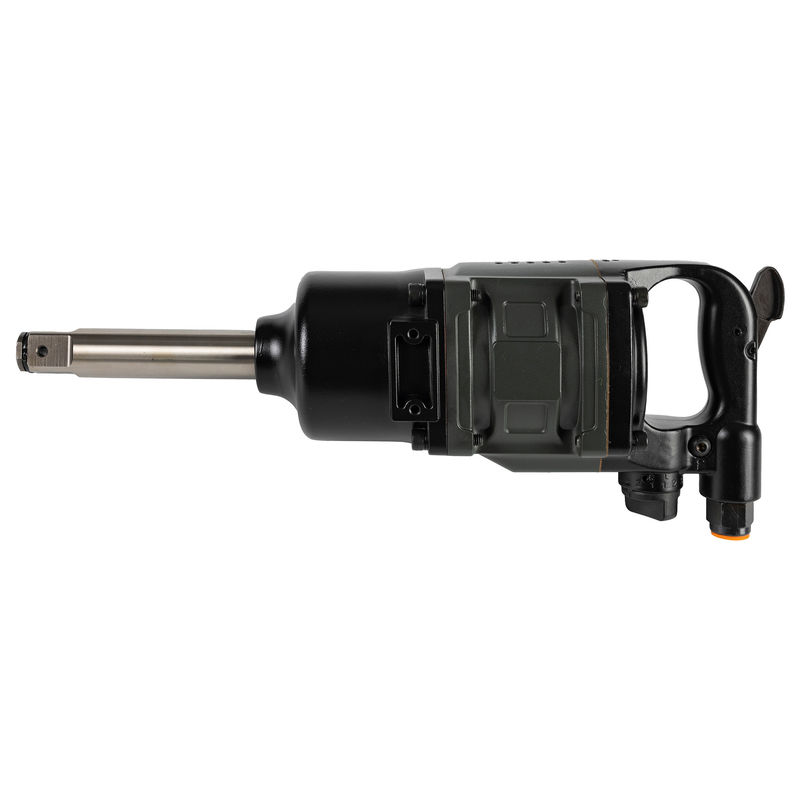

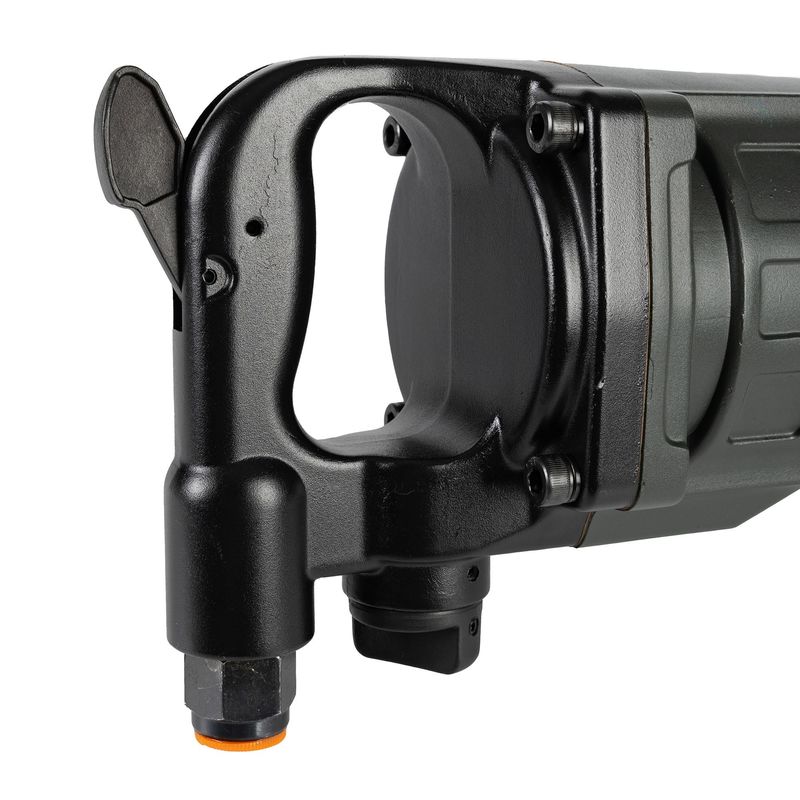

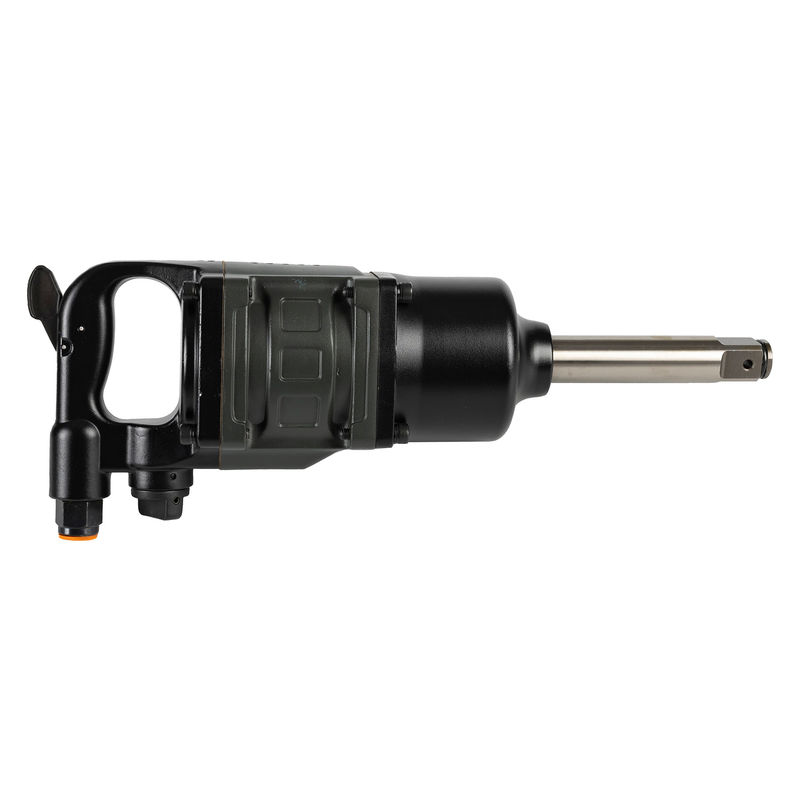

1.The whole shell is made of high-strength aluminum alloy material, which greatly reduces the overall weight of the fuselage,
2.thereby reducing the working strength of the operator;
3.Pinless single hammer clutch design, strong torque, stable operation, high balance, comfortable operation and long service life;
4.The product is suitable for screwing and disassembling threaded connections in pipe pile factories and light-duty automobiles

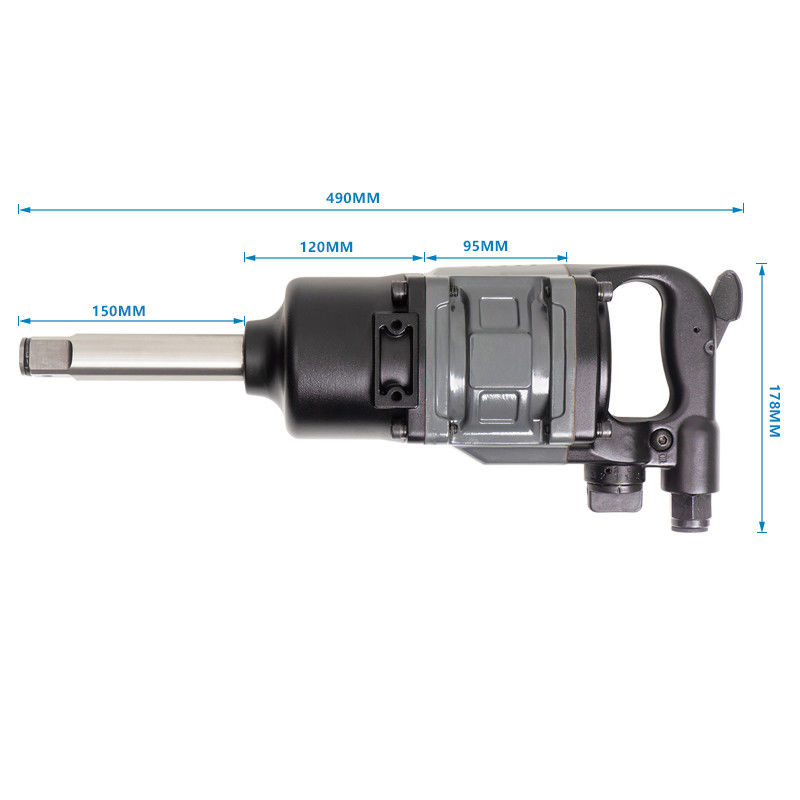

Specifications:
| Item | Square (inch) | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet (inch) | Anvil length (inch) |
Bolt capacity | Air pressure | N.W (inch) | Packing |
| TR-535 | 1" | 4200 | 2400 | Pinless hammer | 1/2" | 1.5" ,3",6" | M34 | 90 PSI | 10.70kg | 30.5cm*23.5cm*56.5cm |
Feature Advantage:
1. Driver:Ultrahigh alloy steel provide superior resistance to impact and abrasion
2.METAL HOUSING :Unmatched durability with Reliable mechanism& durable housing

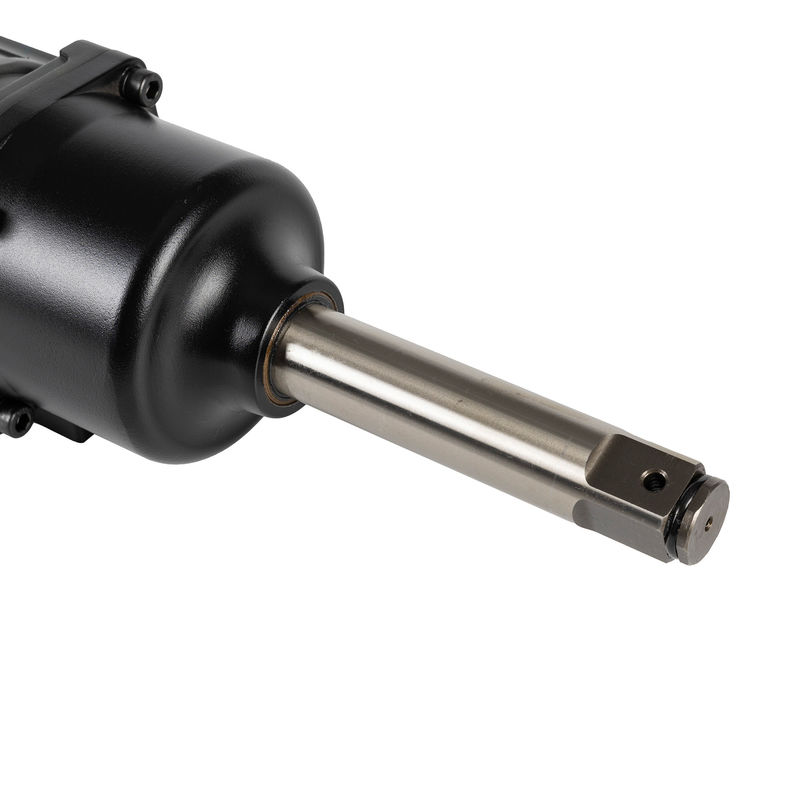

3.ROUGH STRIKE SHAFT :ultra-high alloy steels superior resistance to impact and abrasion
4.POSITIVE INVERSION: porvide 3 kinds of speed withforward and reverse

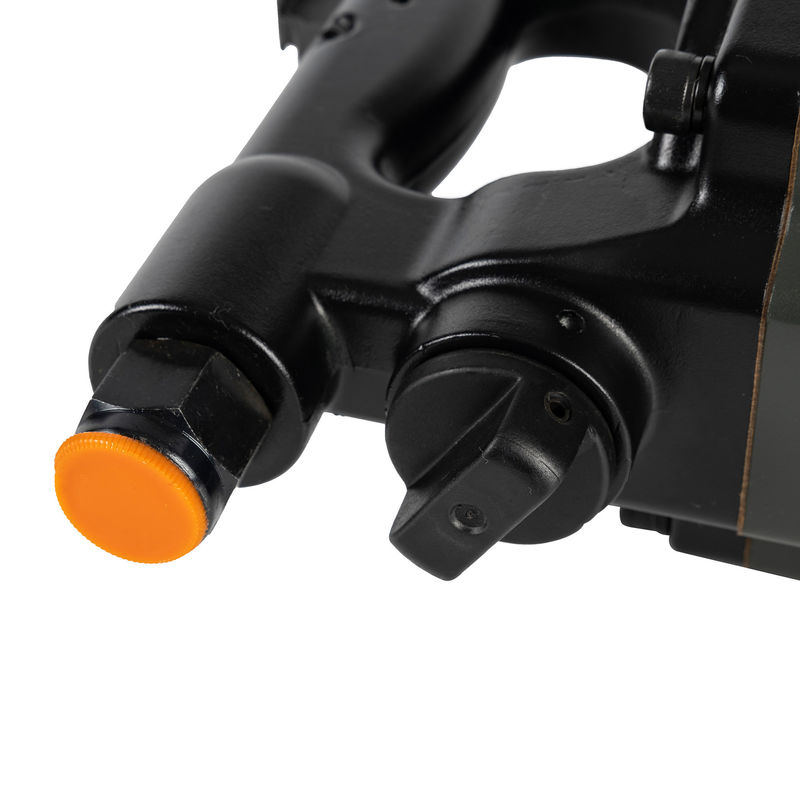

5.IMPROVED AIR INLET :Filter inside stops debris fromgetting into the tool
