Place of Origin:
China
Brand Name:
TR
Certification:
CE
Model Number:
TR-9020
Contact Us
Video
Video
Applications:

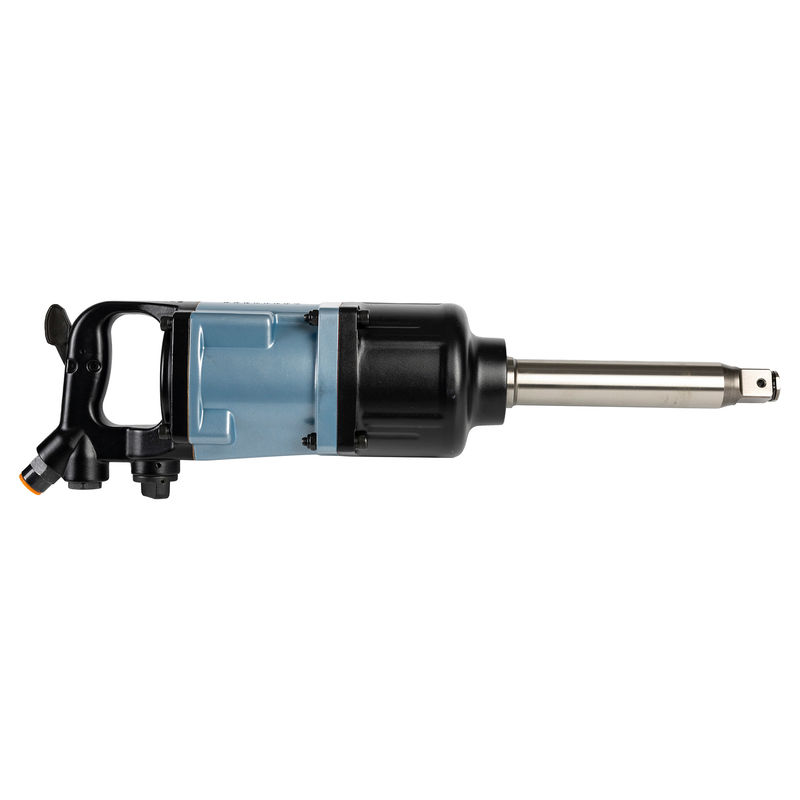

1.TR-9020 is a pneumatic wrench with the largest bolt capacity of our company.
2.It is equipped with a standard 1 '' square head and a single hammer strike structure.

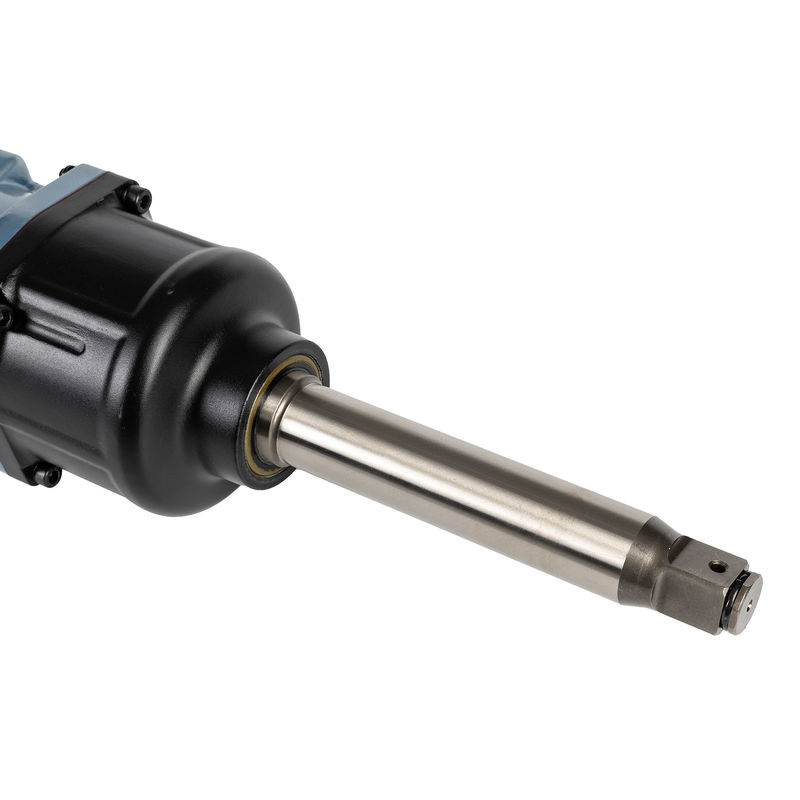

3.The cylinder has a large eccentricity and can withstand greater air pressure, providing strong bolt tightening force. 4.The maximum torque can reach 4000 N.m with a standard shaft exposed length of 9 ".
5.It can also accept different customization requirements, and can easily face different scenarios and applications. 6.Suitable for construction of factories, mines, heavy trucks, buses, roads and bridges, shipbuilding, etc. Lightweight design, strong and durable.
Specifications:
| Item | Square (inch) | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet (inch) | Anvil length (inch) |
Bolt capacity | Air pressure | N.W (inch) | Packing |
| TR-9020 | 1" | 3700 | 4000 | Pinless hammer | 1/2" | 8" or 9" | M50 | 90 PSI | 17.25kg | 72cm*27cm*16.5cm |
